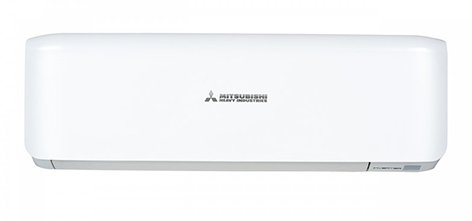

| MODEL | FSS-181EI/JDF-N2 | ||
| Ψύξη | Θέρμανση | ||
| Capacity | kW | 5,13 | 5,27 |
| Capacity | Btu/h | 17.504 | 17.981 |
| Pdesign (C/A/W)* | kW | 5,10 | 6,20/4,10/5,30 |
| Capacity Range | kW | 1,00-6,70 | 1,10-6,80 |
| Capacity Range | Btu/h | 3.412-22.860 | 3.750-23.201 |
| Power Input (nom-max) | W | 320-1.580-2.460 | 350-1.420-2.300 |
| Current Input (nom) | A | 10,91 | 10,20 |
| Annual Consumption | kWh/ann | 293 | 4.200/1.435/1.374 |
| SEER – SCOP(C/A/W) – Energy Class | W/W | 6,10 A++ | 3,10B/4,00A+/5,40+++ |
| Ambient Temperature Range | oC | -15~52 | -15~24 |
| Power supply | V-Ph-Hz | 230V ~ 1N – 50 Hz | |
| Power Connection Cable ODU.-IDU. / Com. | mm2 | 3×2,5 – OXI / 4×1,5 | |
| Air Flow Volume | m3/h | 850/720/610/520 | |
| Sound Pressure Level IDU (H/M/L) – ODU. | dB(A) | 46/42/39/36 – 56 | |
| Sound Power IDU (H/M/L) – ODU | dB(A) | 58/54/51/48 – 63 | |
| Diameter Liquid-Gas Connection Pipe | inch | 1/4″ – 1/2″ | |
| Refrigerant charge (precharge/afer 5m) | R410 – 1,25kg / 20g/m | ||
| Max Distance /Height Connection Pipe | m | 25 / 10 | |
| Indoor Unit Dimension LxHxD /Weight | mm/kg | 1.003x310x222 / 14 | |
| Outdoor Unit Dimension LxHxD /Weight | mm/kg | 960x700x396 / 43 | |
